金剛石以優異的性能在力學、光學、熱學和電子學（如半導體）等領域發揮著重要作用。然而，金剛石表面質量會影響其在這些領域的應用效果，因此通過高效拋光技術獲得高質量表面一直是金剛石研究的重點內容。金剛石拋光技術主要有機械拋光、熱化學拋光、激光拋光和化學機械拋光等，其中化學機械拋光（CMP）具有設備運行成本低、工藝簡單、拋光后表面損傷小等優點。

       近日，北方工業大學安康副教授聯合北京科技大學李成明研究團隊在《人工晶體學報》2024年第10期發表了題為《金剛石化學機械拋光研究進展》的綜述論文（第一作者：安康；通信作者：劉峰斌、李成明）。該論文在對幾種拋光方法進行分析對比的基礎上，聚焦于CMP領域，對其發展歷程進行了較詳盡的對比與分析。早期CMP技術雖在工藝和拋光效率上存在一定局限，但為后續技術的創新與優化奠定了基礎；H2O2及其混合物的應用，不僅增強了CMP過程中的化學反應活性，提高了材料去除率，還有效降低了表面粗糙度，改善了金剛石表面質量；光催化輔助化學機械拋光可使金剛石達到高表面質量，但設備相對復雜，無法滿足大規模生產的需求，需要進一步研究和優化。此外，本文還對化學機械拋光的未來發展進行了預測，為相關領域研究人員提供參考。

       論文題錄●●

       安康, 許光宇, 吳海平, 張亞琛, 張永康, 李利軍, 李鴻, 張旭芳, 劉峰斌, 李成明. 金剛石化學機械拋光研究進展[J]. 人工晶體學報, 2024, 53(10): 1675-1687.

AN Kang, XU Guangyu, WU Haiping, ZHANG Yachen, ZHANG Yongkang, LI Lijun, LI Hong, ZHANG Xufang, LIU Fengbin, LI Chengming. Research Progress in Chemical Mechanical Polishing of Diamond[J]. Journal of Synthetic Crystals, 2024, 53(10): 1675-1687.

       章節結構

       0　引言

       1　金剛石的拋光方法

       2　金剛石的化學機械拋光

       2.1　早期化學機械拋光

       2.2　H2O2及其混合物化學機械拋光

       2.3　光催化輔助化學機械拋光

       3　金剛石化學機械拋光的原子級去除機理研究

       4　結語與展望

       文章導讀

       當前，金剛石的表面拋光技術主要有機械拋光、熱化學拋光、激光拋光（laser polishing, LP）、離子束拋光（ion beam polishing, IBP）、等離子體輔助拋光（plasma assisted polishing, PAP）和CMP等。

機械拋光是最常用的金剛石拋光方法，拋光示意圖如圖1所示。拋光時，含有金剛石粉的拋光盤高速旋轉，通過樣品臺向下施加壓力，實現材料的去除。機械拋光會造成金剛石工件的表面損傷和亞表面損傷，拋光過程中的機械沖擊會導致拋光表面形成凹坑、亞表面裂紋和晶格損傷，亞表面裂紋和晶格損傷無法通過后續的拋光步驟消除，且難以被光學設備檢測。

圖1　機械拋光裝置示意圖

       熱化學拋光是以碳原子在熱金屬中的擴散、金剛石轉化為石墨和金剛石的氧化為基礎的拋光技術；熱化學拋光時，金剛石膜在真空、氫氣或惰性氣體氣氛下，在加熱到750~1000 ℃的熱鐵光盤上轉動摩擦，在高溫條件下，通過碳原子向鐵質拋光盤擴散來實現金剛石膜的平整化；激光拋光通過激光束照射到金剛石厚膜表面，使金剛石膜表面溫度升高，進而使被加熱的金剛石表面碳原子氣化和石墨化，達到去除材料的目的；離子束拋光利用氧或具有較大濺射率的惰性氣體（Ar）離子，對金剛石膜進行濺射刻蝕，可實現精細化拋光；等離子體輔助拋光同樣用于金剛石精細化拋光，可提高金剛石表面光潔度，Yamamura等[41]采用PAP技術對CVD單晶金剛石進行拋光，先使用含水蒸氣的氬基等離子體對拋光板和單晶金剛石(100)表面進行改性，后在10~52.6 kPa的拋光壓力下對單晶金剛石進行拋光，結果表明，拋光后的表面粗糙度為0.13 nm，如圖2所示。

圖2　等離子體輔助拋光后的單晶金剛石(100)面AFM照片[41]

       激光拋光、離子束拋光和等離子體輔助拋光在粗拋和精拋領域有著各自的優勢，但設備的使用成本明顯高于其他拋光方法。常見金剛石拋光特點如表1所示。

表1　常見金剛石拋光方法特點

       化學機械拋光（見圖3）是一種超精密拋光的加工方法，通過在機械拋光過程中加入氧化劑，氧化碳原子提高拋光速率，并且具有表面損傷小、粗糙度低、設備簡單、運行維護成本低，拋光后的表面污染較輕等優點，在金剛石拋光領域逐漸受到重視。

圖3　化學機械拋光裝置示意圖[43]

       早期化學機械拋光以高溫熔融鹽作為氧化劑進行拋光。Yuan等[49]為了降低環境污染，選用K2FeO4作為氧化劑，在化學機械拋光前用不同尺寸的金剛石粉進行機械研磨，使CVD金剛石膜的表面粗糙度降至1.042 nm，之后通過在K2FeO4加入金剛石、B4C、SiC、Al2O3等四種磨料配制拋光液，用H3PO4和NaOH來調節拋光液的pH值，拋光溫度為50 ℃。拋光結果表明，獲得的金剛石表面粗糙度為0.478 nm，無表面劃痕或凹坑，如圖4所示。

圖4　金剛石表面光學圖像[49]。(a)機械拋光；(b)化學機械拋光

       為了驗證不同種類的氧化劑對化學機械拋光的影響，Yuan等[50]開始進行對比試驗，用金剛石粉進行機械拋光后，表面粗糙度下降到48 nm，再用K2FeO4、KIO4、KMnO4和K2CrO7等不同氧化劑在50 ℃的條件下，進行10組化學機械拋光對比試驗，拋光機理如圖5所示，其中在化學機械拋光過程中使用K2FeO4拋光出的金剛石表面粗糙度為8.72 nm，具有最佳的表面質量。

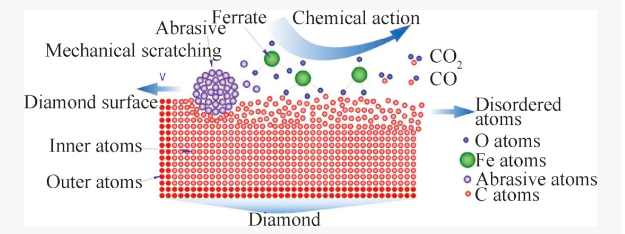

圖5　化學機械拋光機理示意圖[50]

       H2O2是一種強氧化劑，使用H2O2溶液作為拋光液，在室溫下進行化學機械拋光后，可得到原子級光滑的表面。Kubota等[54]隨后改進了工藝，通過在H2O2溶液中用鐵板對金剛石進行化學機械拋光，設置工作臺和樣品臺的轉速均為40 r/min，壓力為3.3 MPa，拋光15 h后，在3 μm×3 μm的面積上，得到Ra=0.784 nm，RMS=1.076 nm的表面，而在500 nm×500 nm的面積上可得到表面粗糙度為0.170 nm，RMS=0.310 nm。反應機理如圖6所示，在Fe2+的催化下，H2O2會分解成具有強氧化性的·OH，在金剛石表面形成C=O和C—OH等化學鍵，磨料會在壓力的作用下與金剛石表面的C=O和C—OH結合，在剪切力作用下，金剛石表面的C—C鍵會發生斷裂，從而實現C原子去除。

圖6　基于Fenton反應的化學機械拋光過程中碳原子的去除機理示意圖[55]

       為了驗證Fe2+對拋光的影響，Yuan等[57]采用機械研磨和化學機械拋光相結合的方法，利用磨料顆粒和過渡金屬離子進行室溫拋光。先進行機械研磨，得到粗糙度約為0.2 μm的金剛石表面。配制質量分?jǐn)?shù)為30%的H2O2溶液100 g、去離子水100 g、W0.5金剛石粉10 g、FeSO4水溶液100 g的拋光液，用于化學機械拋光處理，拋光時間為3 h，獲得表面粗糙度0.452 nm的超精密光滑金剛石表面。通過對比實驗，發現相同條件下不含F(xiàn)e2+的拋光液拋光出的金剛石表面粗糙度為0.741 nm，證明了Fe2+的存在增強了拋光效果，如圖7所示。

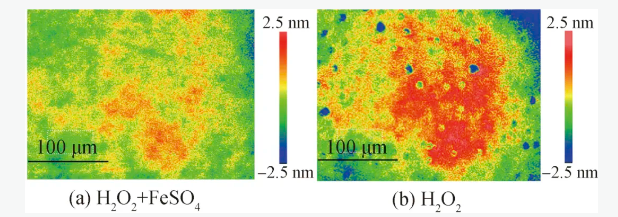

圖7　金剛石表面顯微干涉圖像[57]

       Yuan等[55]對比了幾種基于Fenton反應的拋光液對金剛石化學機械拋光的影響，分別是FeSO4+H2O2、Fe2(SO4)3+H2O2和Fe·OH+H2O2，結果表明用Fe2(SO4)3+H2O2試劑拋光金剛石，在868 μm×868 μm范圍內，可得到最低的表面粗糙度0.076 nm，去除率最高可達752 nm/h。Fe2(SO4)3+H2O2作為拋光劑拋光效果最好的原因是H2O2被快速消耗，金剛石不能被完全氧化，而Fe3+需要消耗H2O2生成Fe2+，然后生成·OH，反應速率較慢，因此能夠?qū)饎偸L時間氧化（見圖8）。

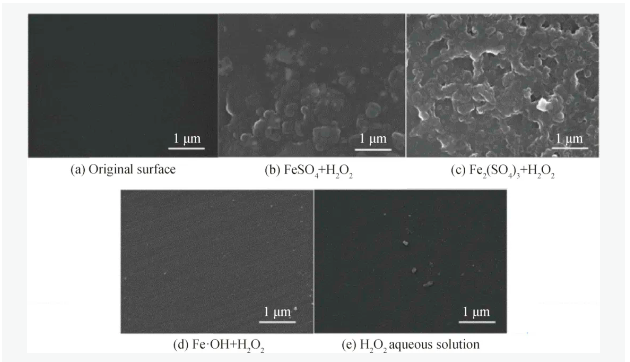

圖8　氧化前、后金剛石表面SEM照片[55]

       金剛石的帶隙能為5.45 eV，可以在波長小于225 nm的紫外照射下激發產生空穴和電子對，并立即與大氣中的氧和水分子結合，成鍵反應產生大量的O原子和·OH，使金剛石表面氧化。研究人員基于這一理論，提出了光催化輔助化學機械拋光（photocatalytic assisted chemical mechanical polishing, PCMP）法，Anan等[60]用紫外光（UV）輻照拋光單晶金剛石（見圖9），用石英拋光盤對Ib型單晶金剛石進行拋光，紫外光可以透過石英拋光盤照射在金剛石表面。拋光前在235 nm×309 nm范圍內樣品的表面粗糙度為1.35 nm，經過2 h的UV拋光，樣品表面粗糙度達到0.19 nm，而非UV照射拋光的金剛石表面粗糙度僅為0.74 nm，并在單晶金剛石的(100)面和(110)面均證實了紫外輻照的有效性。

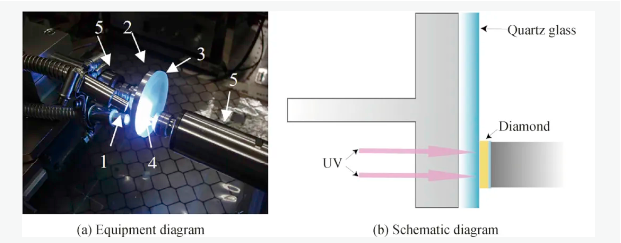

圖9　高速水平主軸紫外線拋光機[60]

       在這一基礎上，有學者將光催化輔助CMP與Fenton反應相結合，用于提高金剛石表面質量，Yang等[63]以納米金剛石（nanodiamond, ND）和CuFe層狀雙氫氧化物（layered double hydroxide, LDH）為原料制備了用于可見光-Fenton反應的催化劑，將質量分?jǐn)?shù)為20%的H2O2溶液混合ND/LDH催化劑作為拋光液，在拋光過程中開啟可見光源，ND/LDH催化劑在可見光照射下，發生Fenton反應產生具有強氧化性的·OH，單晶金剛石表面的碳原子經過·OH氧化，再經過機械作用的處理，得到光滑的表面，實驗裝置如圖10所示。

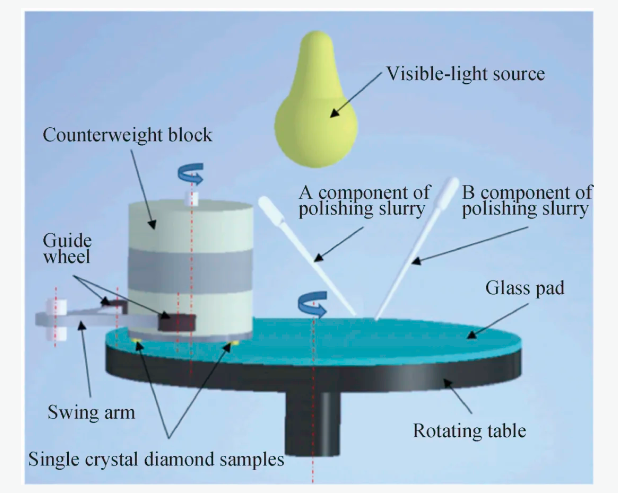

圖10　實驗裝置示意圖[63]

       納米TiO2在受到一定波長（387.5 nm）的紫外光照射后，處于價帶的電子就會被激發躍遷到導帶上，同時在價帶上產生帶正電的空穴，空穴可以將吸附在TiO2顆粒表面的OH-和H2O氧化，生成具有強氧化性的·OH，原理如圖11所示。

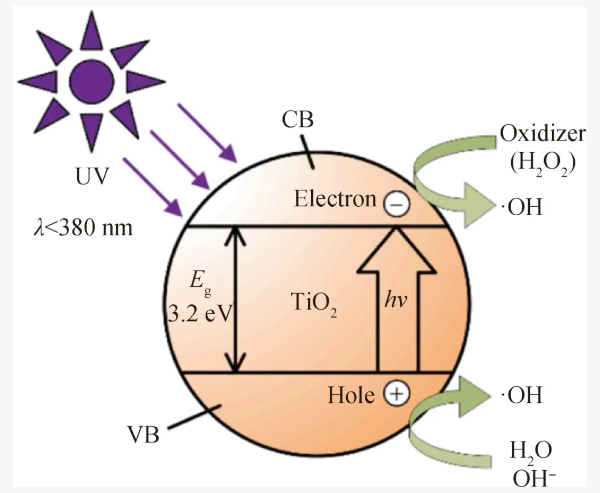

圖11　TiO2紫外光催化反應的原理[66]

       光催化輔助化學機械拋光可提高金剛石表面質量，達到納米級粗糙度。但相比傳統的化學機械拋光技術，設備復雜度較高，無法滿足大規模生產的需求，需要進一步地研究和優化，以提高其實際應用能力。表2對化學機械拋光常用氧化劑成分進行了總結。

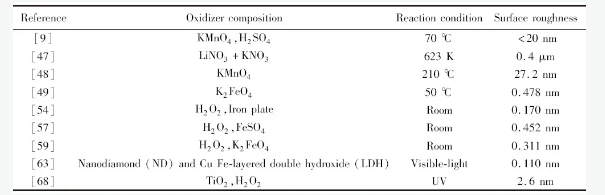

表2　文獻中化學機械拋光常用氧化劑成分總結

       分子動力學（molecular dynamics, MD）模擬可以通過高時間和空間分辨率可視化材料去除的細節，是一種適合研究原子級材料去除機理的方法。Yang等[77]和Liu等[78]均采用分子動力學方法研究了金剛石在金剛石(100)面上摩擦滑動時，金剛石晶體表層非晶態碳的形成和演化過程，模型如圖12所示，模擬結果表明，在摩擦作用下，金剛石sp3雜化碳向sp2雜化發生轉變，沿[100]方向滑動的非晶化速率大于沿[110]方向滑動的非晶化速率。

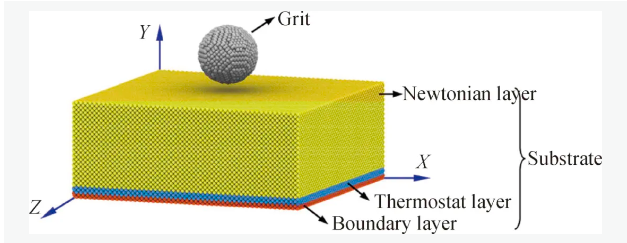

圖12　金剛石晶體機械拋光MD模型[78]

       Guo等[58]用分子動力學模擬研究了SiO2磨料在H2O2/純H2O水溶液中化學機械拋光金剛石過程中的原子去除機理，模型如圖13所示。金剛石表面的C與·OH、O和H結合成為C—OH、C—O、C—H鍵，在機械拋光的作用下，金剛石表面的C原子以CO、CO2或C鏈的形式被快速去除，從原子尺度上解釋了化學機械拋光過程中C原子的去除過程，并進一步研究壓力對材料去除率的影響，發現壓力越大金剛石表面吸附的·OH越多，越有利于C原子的去除。

圖13　SiO2磨料在H2O2/純H2O水溶液中拋光過程MD示意圖[58]

       結語與展望

       當前金剛石正以每年數億美元的市場規模擴大應用范圍，表面質量是影響其應用的重要因素。已有多種拋光技術應用于金剛石平整化過程，本綜述對其優缺點進行了總結分析?；瘜W(xué)機械拋光具有較高去除率、高表面質量、低加工成本等優勢，是一種高效的拋光方法，尤其是H2O2及相關加工方法的使用，不僅使金剛石表面粗糙度達到亞納米級，可以獲得超光滑且低損傷的表面，而且降低了化學污染。未來，實現金剛石大面積、無亞表面損傷的拋光依舊是其在半導體、熱沉等領域獲得應用的重要基礎。
